HOBBYWING QUICRUN HW30107100 10BL60 Brushless ESC 60A

Dostępność: Na zamówienie

Koszt wysyłki: od 16,00 zł

Kod producenta: HW30107100

Cena brutto: 239,90 zł

Cena netto: 195,04 zł

Ilość: szt.

Dodaj do koszyka

dodaj do schowka

Zapytaj o produkt Poleć znajomemu Specyfikacja PDF

Opis produktu
Recenzje produktu (0)

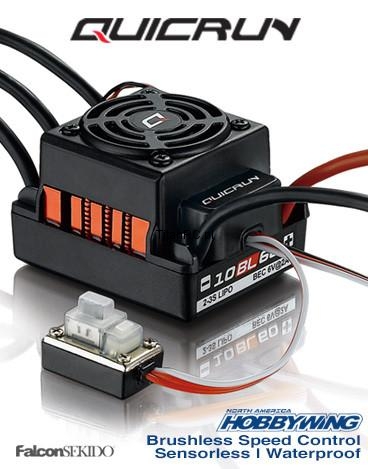

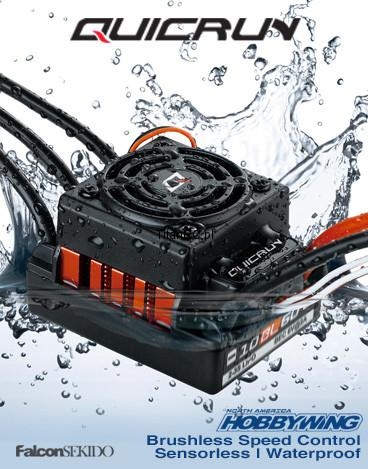

QUICRUN 10BL60 Brushless ESC - WP-10BL60

Water-proof and dust-proof for all-weather races.

Please make sure to uninstall the cooling fan before using this ESC in water
Clean and dry it soon after the use for avoiding the connectors get rusty.)

Model / SKU	QUICRUN-WP-10BL60 / 30107100
Cont./Peak Current/ Resistance	60A/360A/0.001Ω
Motor Type Supported	Sensorless Brushless Motor
Car Applicable	1:10 On-road/Off-road/Buggy/Monster
Motor Limit	For 2S Lipo or 6 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<6000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<4000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000
Battery	4-9 Cells NiMH 2-3S Lipo
BEC Output	6V/2A (Linear Mode)
Size/ Weight	48.5(L)38(W)32(H) / 90g
External Program Port	Available
Working voltage of Fan	From battery directly without regulating

Parameter List of QUICRUN 10 (WP-10BL60)

*letters in blue in the form indicate the factory default settings

Programmable Items	Option 1	Option 2	Option 3	Option 4	Option 5	Option 6	Option 7	Option 8	Option 9
1. Running Mode Note 1	Fwd/Br	Fwd/Rev/Br	Fwd/Rev
2. Drag Brake Force	0%	5%	10%	20%	40%	60%	80%	100%
3. Low Voltage Cutoff	Disable	2.6V /Cell	2.8V /Cell	3.0V /Cell	3.2V /Cell	3.4V /Cell
4. Start Mode (Punch)	Level 1	Level 2	Level 3	Level 4	Level 5	Level 6	Level 7	Level 8	Level 9
5. Max. Brake Force	25%	50%	75%	100%	Disable
6. Max. Reverse Force	25%	50%	75%	100%
7. Initial Brake Force	=Drag brake force	0%	20%	40%
8. Throttle Range	6% (Narrow)	9% (Normal)	12% (Wide)	ã€€
9. Timing	0 deg	3.75 deg	7.5 deg	11.25 deg	15.0 deg	18.75 deg	22.5 deg	26.25 deg
10. Overheat Protection	Enable	Disable
11. Motor Rotation	CCW	CW
12.Cell Count	Auto-identification	2S LiPo	3S LiPo	4S LiPo	5S LiPo	6S LiPo

Note 1: Fwd=Forward, Rev=Reverse, Brk=Brake

External programming port, easy to connect to the LED Program Card (purchase separately) when setting the ESC
Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
