QUICRUN HW30404001 2435 SL motor 4500kv 2 pole G2
Dostępność: Dostępny
Koszt wysyłki: od 16,00 zł
Kod producenta: HW30404001
Kod EAN: 6938994412162
- Opis produktu
- Recenzje produktu (0)

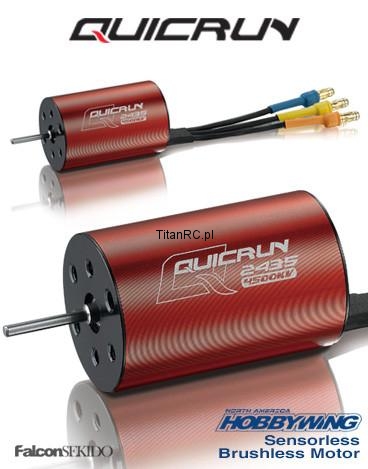

QUICRUN 2435 SL motor 4500kv 2 pole G2
QR 2435 SL 2 POLE for 1:16 & 1:18 Cars & Trucks (SPORT)
High Efficiency means more POWER while keeping TEMP low!
- Its 2-pole rotor creates greater torque. QUICRUN-2435 brushless sensorless motor suits various 1/16 & 1/18 vehicles, especially buggies and monster trucks.
- Composed of high quality components: high tech aluminum alloy motor shell, heat-resistant wires and magnets, and long-life bearings.
- High quality pre-soldered gold plated connectors. The QUICRUN-2435 motor is a plug-and-play masterpiece.
Parameter List for QUICRUN-2435 SL-4500KV-4 POLE
| Model PN (Sku) |
QUICRUN 2435 |
QUICRUN 3656 |
QUICRUN 4074 |
| KV | 4500KV | 3800KV | 2000KV |
| LiPo Cells | 2-3 | 2-3 | 2-6 |
| Resist.* (Ω) | 0.0498 | 0.0055 | 0.0065 |
| No-load Current (Amp) | 1.5 | 2.3 | 3.1 |
| Max. Output Power (W) | 150 | 420 | 2600 |
| Current at the Point of M.O.P *(Amp) | 33 | 110 | 160 |
| Outer Diameter /Length (mm) | 24.0/36.5 | 36.0/56.0 | 39.8/73.8 |
| Diameter of the Shaft (mm) | 2.30/14 | 3.17/16 | 5.00/20 |
| Pole | 2 | 4 | 4 |
| W.T.*(g) | 73 | 232 | 393 |
| Application | 1:18,1:16 On/Off-road/ Truck /Monster |
1:10 On/Off-road/ Truck/Monster |
1:8 Truck/Monster |
Two types of screws are suitable for the installation of QUICRUN-2435 motor: M2.6 (diameter=2.6) and M3 (diameter=3.0).
(This motor has 3 pairs of screw holes on the front end bell: 2 pairs are 2.6mm in diameter, and 1 pair is 3.0mm in diameter)
b) Depth of screw holes: QUICRUN-2435=4mm.
